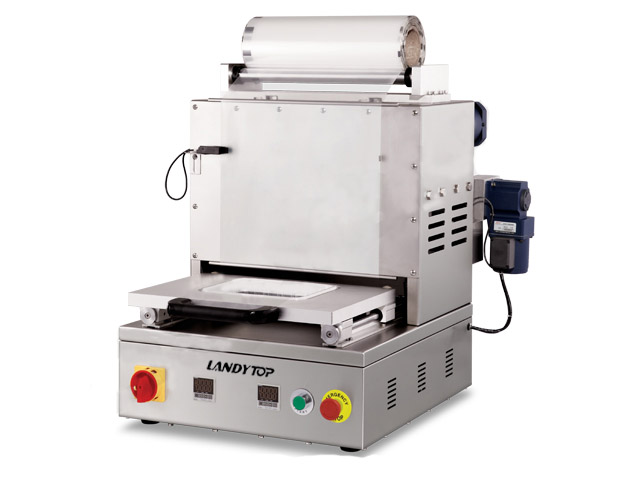

DT-5 Table Top Tray Sealer

Description
DT-5 table top tray sealer (sealer tray equipment) is suitable for any sealable trays such as PP, PE, PET, PVC. Cardboard or foil semi-automatic tray sealing machine is centrally controlled for all functions from digital control panel.
Application of Sealer Tray Equipment
DT-5 table top tray sealer is widely applicable to the package of ready meals, fresh and cooked meats, fish, and vegetables. It is typically found in supermarket, local butchers and grocers.

Technical Characters of Sealer Tray Equipment
1. OMRON digital control system: The data setting and motion control are accurate and the performance is reliable, so the operation is easier.
2. The sealing mould can be changed. One machine is available for multiple different trays.
3. Structure Material: The main structure material adopts 304 Stainless Steel. It is safe and easy to clean.
Technology Specification

Model
DT-5 Table Top Tray Sealer
Max Tray Dimensions(mm)
350 × 220 × 60
Max Width of Film(mm)
410
Max Diameter of Film(mm)
300
Packaging Speed(times/min)
5-6
Electrical Requirement
1P/220V/50HZ
Consume Power(kW)
1.5
Main Machine Weight(kg)
108
Main Machine Dimensions(mm)
800 × 640 × 720

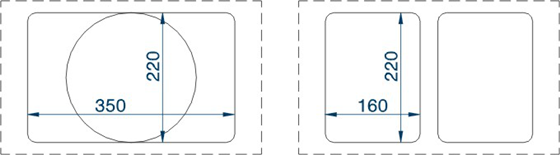

Die Plates Available Format

    1. DT-5 Table Top Tray Sealer

      Flexible and reliable packaging equipment systems

    1. DT-5 Table Top Tray Sealer

      Multiple package sizes, Quick mold switching

    1. DT-5 Table Top Tray Sealer

      Intelligent control / Precision parts

    1. DT-5 Table Top Tray Sealer

      Complete Hermetic Seals Every Time

DT-5 Table Top Tray Sealer
